Groundworks across Ayrshire — excavation, drainage and concrete bases

Groundworks covers everything that happens below and at ground level before the visible part of a project begins. For a garden room or garage it means excavating the footprint, checking and improving ground conditions where necessary, and installing a concrete base to the correct specification. For a driveway or patio it means excavating to formation level, removing problem material (clay, old concrete, rubble) and installing the sub-base that the surface will sit on. For a waterlogged garden it means diagnosing where the water is coming from and installing a drainage system that gets it away. For a landscaping project it means clearing the site, levelling to the right falls and getting everything ready for the work that follows. The groundwork stage is where the decisions that determine longevity are made — the right depth, the right material, the right drainage. Getting those calls wrong at this stage means problems later that are expensive and disruptive to fix. John treats groundworks as the most critical part of any project, not just the bit that gets covered up.

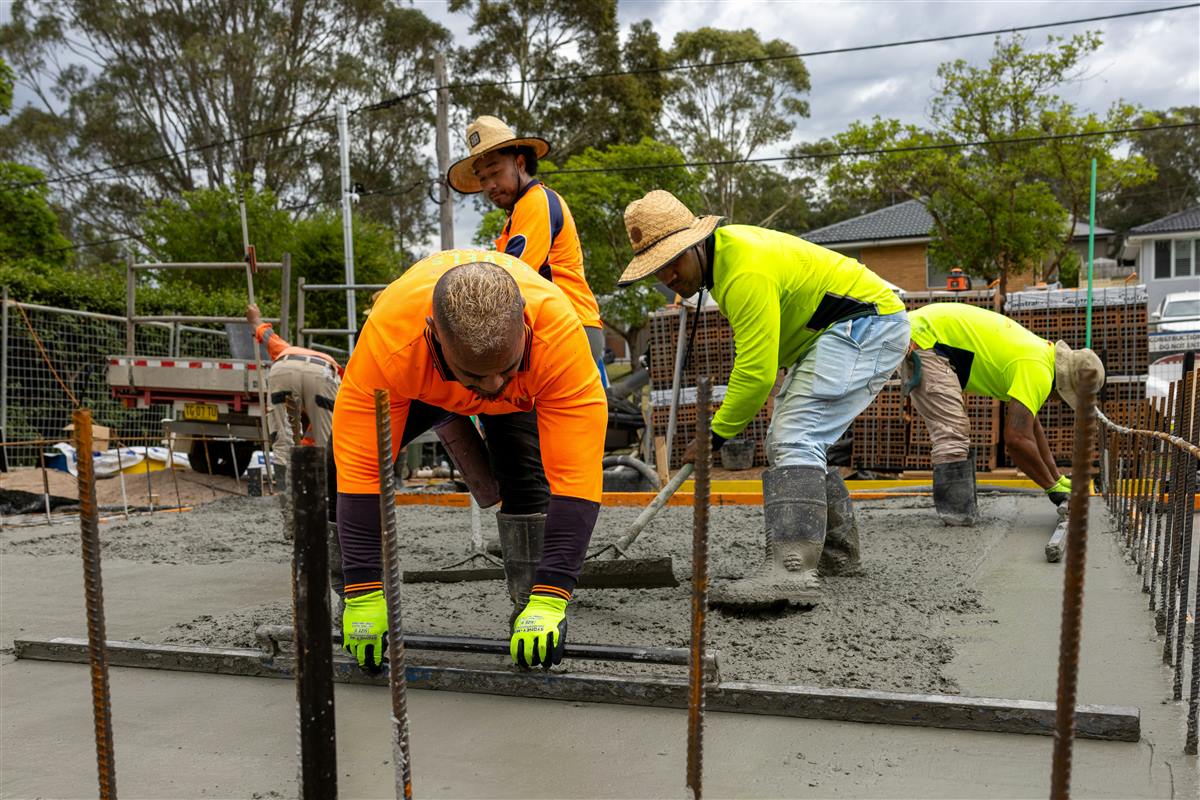

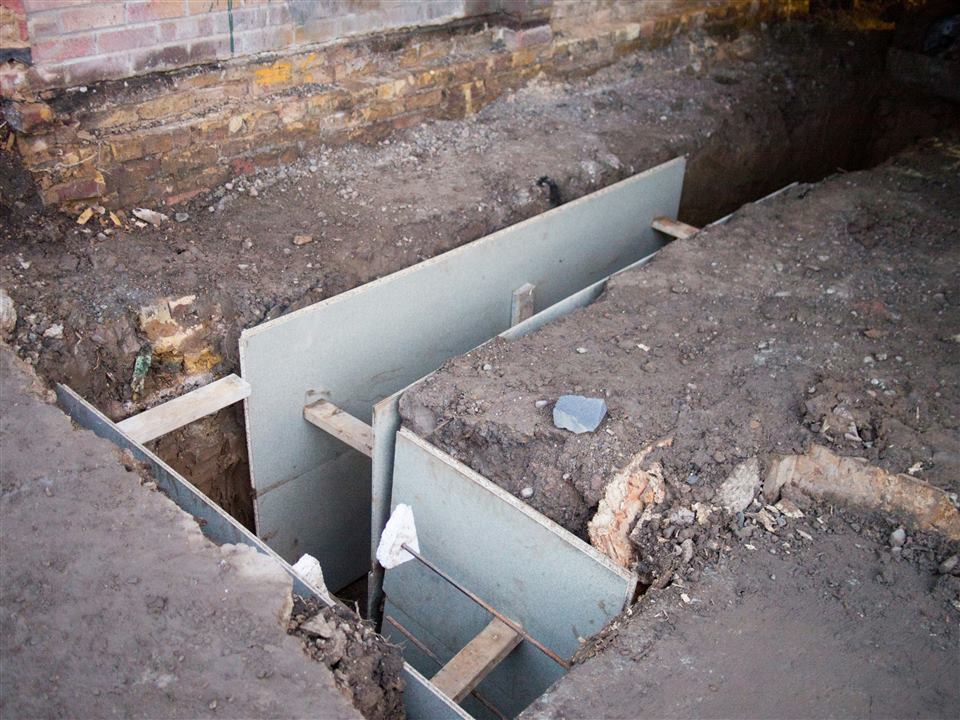

For structural foundations — extensions, new builds and outbuildings that require a building warrant — work must comply with Scottish Building Standards. For a standard masonry strip foundation in Ayrshire, this typically means a minimum depth of 1000mm (more on clay or in areas with significant frost exposure) with a minimum concrete thickness of 225mm. The actual specification depends on what’s being built, the specific ground conditions and whether a structural engineer’s input is required. For garden rooms and sheds that don’t require a building warrant — generally structures under 30m² that aren’t sleeping accommodation — a concrete slab is typically appropriate rather than a strip foundation. John advises on slab thickness and reinforcement based on the structure size, the ground conditions and the expected load. For any project that does require a building warrant, he works to the engineer’s or architect’s specification. If you’re unsure whether your project requires a warrant, the local authority building standards department is the right first point of contact — this is worth checking before any groundwork is started.

Waterlogging in Ayrshire gardens is extremely common — the combination of high annual rainfall, heavy clay soils in much of the region and low-lying coastal plots creates conditions where surface and sub-surface water have nowhere to go. The right solution depends on what’s causing the problem. Surface water pooling after heavy rain usually requires improved surface drainage — regrading the ground to correct falls and installing a channel drain or linear drain at the low point, connected to a soakaway or approved outlet. Sub-surface waterlogging (water sitting in the soil rather than on the surface) usually requires a French drain or perforated pipe run at depth, with aggregate fill and a soakaway connection. Where the water table is high — common on coastal Ayrshire plots near Prestwick and Troon — drainage runs can still meaningfully improve conditions even if they can’t fully resolve the underlying table level. John diagnoses the cause at the site visit before recommending a solution. Installing drainage without understanding what’s driving the water is a common and expensive mistake — John won’t propose a solution he’s not confident will work on the specific site.
